10kW Quanchai QC385D Silenced Diesel Gen-Set

This is the main Go-to Gen-set we recommend to be used if requiring Power Security in conjunction with a larger kWh Battery bank !

After Sunset your Battery bank will power your premises until low battery voltage triggers either a YiY or LUX inverter to Automatically Start a Generator (AGS function), or import power from the State Grid, so if the State-Grid goes down or you are Off-Grid, the inverter will trigger the AGS function.

Either-way, this GenSet can be programmed as the First back-up power source, and as such the Annual Fuel usage will be minimal, as 95% of the time a Gen-set will only need to be operated for short periods, or until your battery voltage reaches the pre-programmed voltage or run for a timed period, that simply tops-up the battery's until Sunrise, where Solar will take over again, although if you have Aqua &/or Wind generation, the GenSet many not need to be started!

This 3 cylinder, 10kWh Gen-Set is super quiet, 68db @7mt sound level, the unit's Crated weight is 600kg, and is backed by an *Australian 1200 hour/ 1 year warranty, and can be ordered in Single, Two or Three Phase, Brushless 12 wire Alternator, Water cooled 50°C Radiator, direct injection 1.532 litre, 3 Cylinder, 4 stroke Diesel Generator, capable of producing a seriously high 10'000W maximum/12'000W continuous output of power.

Features dual heavy-duty IP66 rated 15A, 240V power outlets, that you connect directly into the inverter, the generator also comes with a 8.3A 12V DC outlet to accommodate charging the generator battery, and can also charge another 12V battery.  This units user-friendly design comes with electric key start, overload protection, low oil indicator and multifunctional LCD monitor.

Externally, it has a quality 3mm high tensile powder coated Steel Silenced enclosure, secured with an assembly of heavy-duty bolts, and purpose built with dual swing doors for easy-access, aiding its minimal service requirements.  The dual swing access doors also carry thick sound insulation to provide super-quiet operating, they've been made extra-large for hassle free internal system access.

Internally, the generator features an oversized lead acid battery, air cooled Radiator fan, an extra-large 48 Litre fuel tank, and an easy-flow oil drain drip tray.

Furthermore, this generator can be converter to run on Bio-Gas or can run on standard diesel, and WVO / Bio-diesel as can accept a blended natural plant based fuels*.  Making this amazing eco-friendly technology produces exactly the same power outputs as conventional generator, but with up to 85% less harmful emissions.

This generator is perfect for home, farm and Industrial use, or as a portable power supply or where mains power is temporarily unavailable. Its heavy-duty, high-performance nature delivers an abundance of energy for all kinds of applications.

PRP: Prime Power is available for an unlimited number of annual operating hours in variable load applications, in accordance with ISO8528-1.  A 10% overload capability is available for a period of 1 hour within 12-hour period of operation, in accordance with ISO 3046-1.

ESP: Standby Power Rating is applicable for supplying emergency power in variable load applications for up to 200 hours per year in accordance with ISO8528-1. Overload is not recommended.

Imagery:

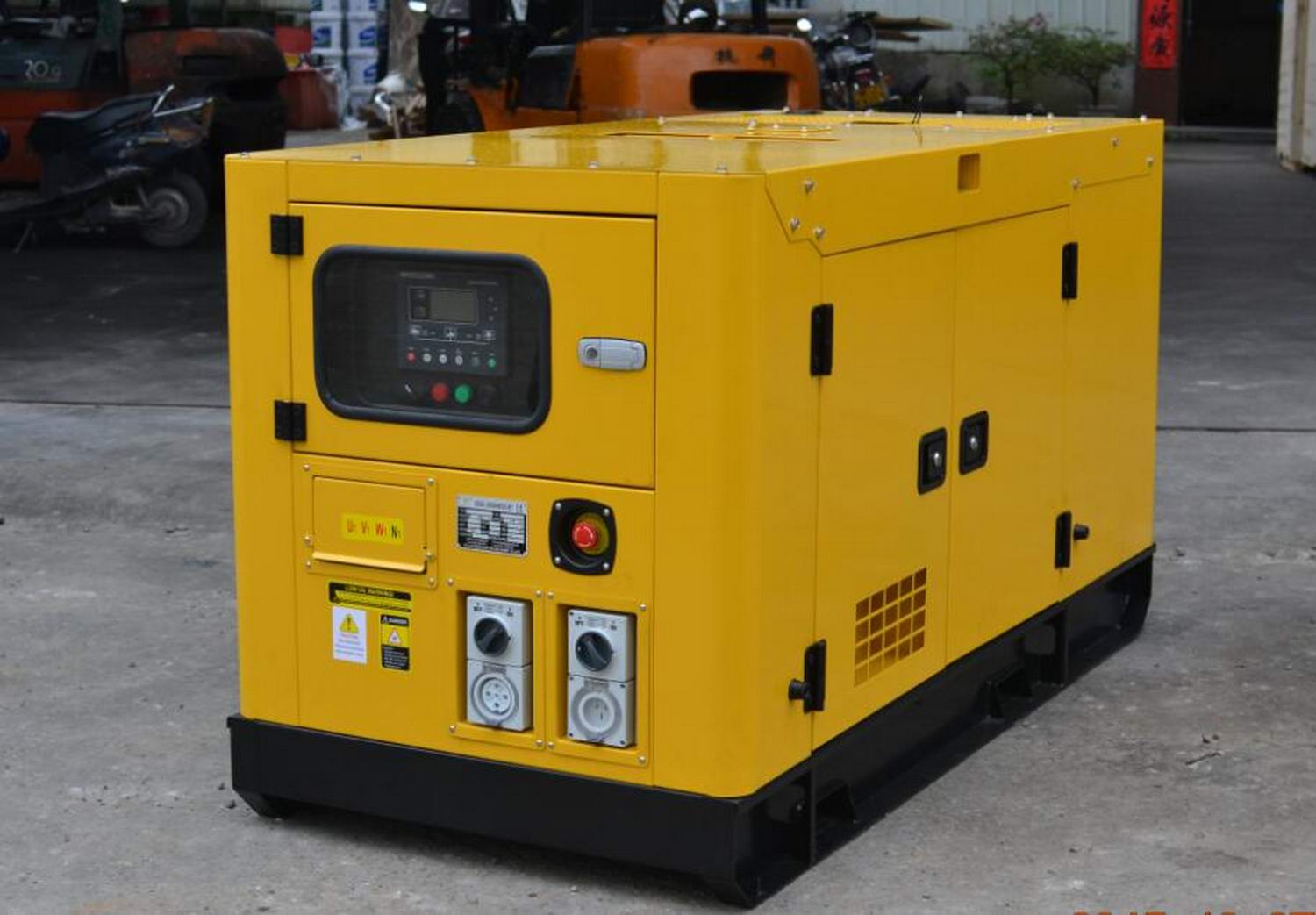

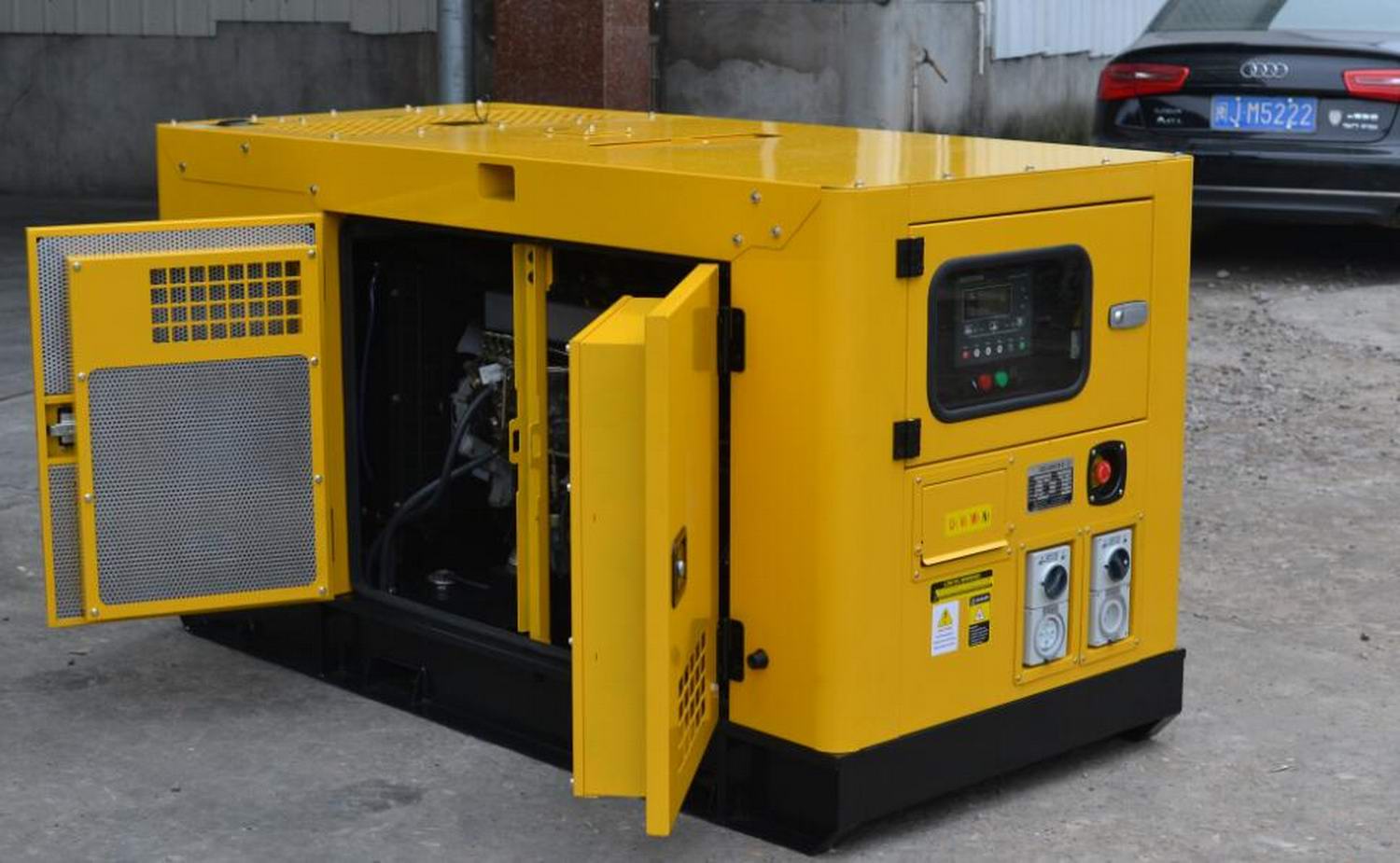

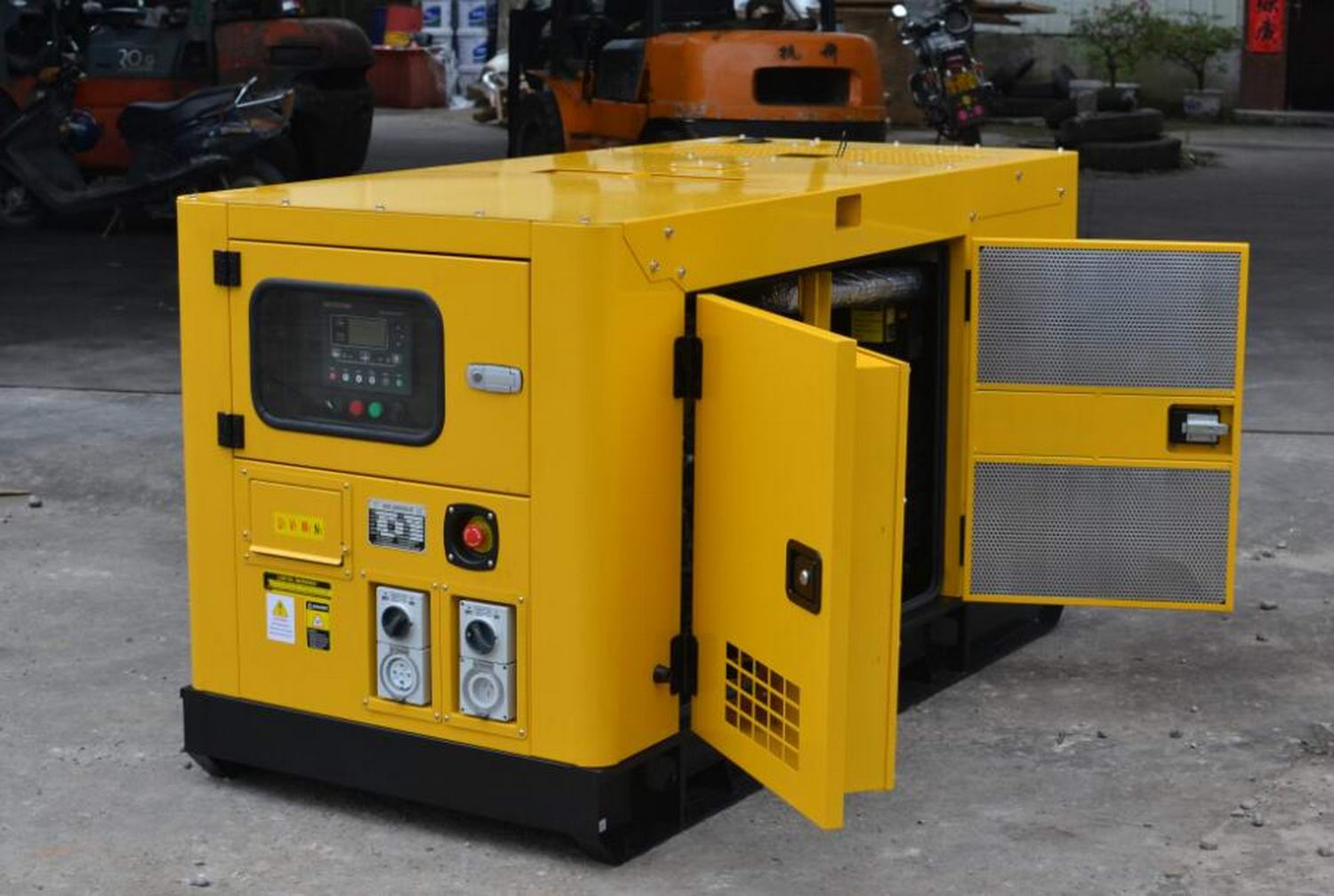

Front Panel, with Australian Plugs.	Access to Alternator & Filters etc.	Doors swing 180% of easy access.

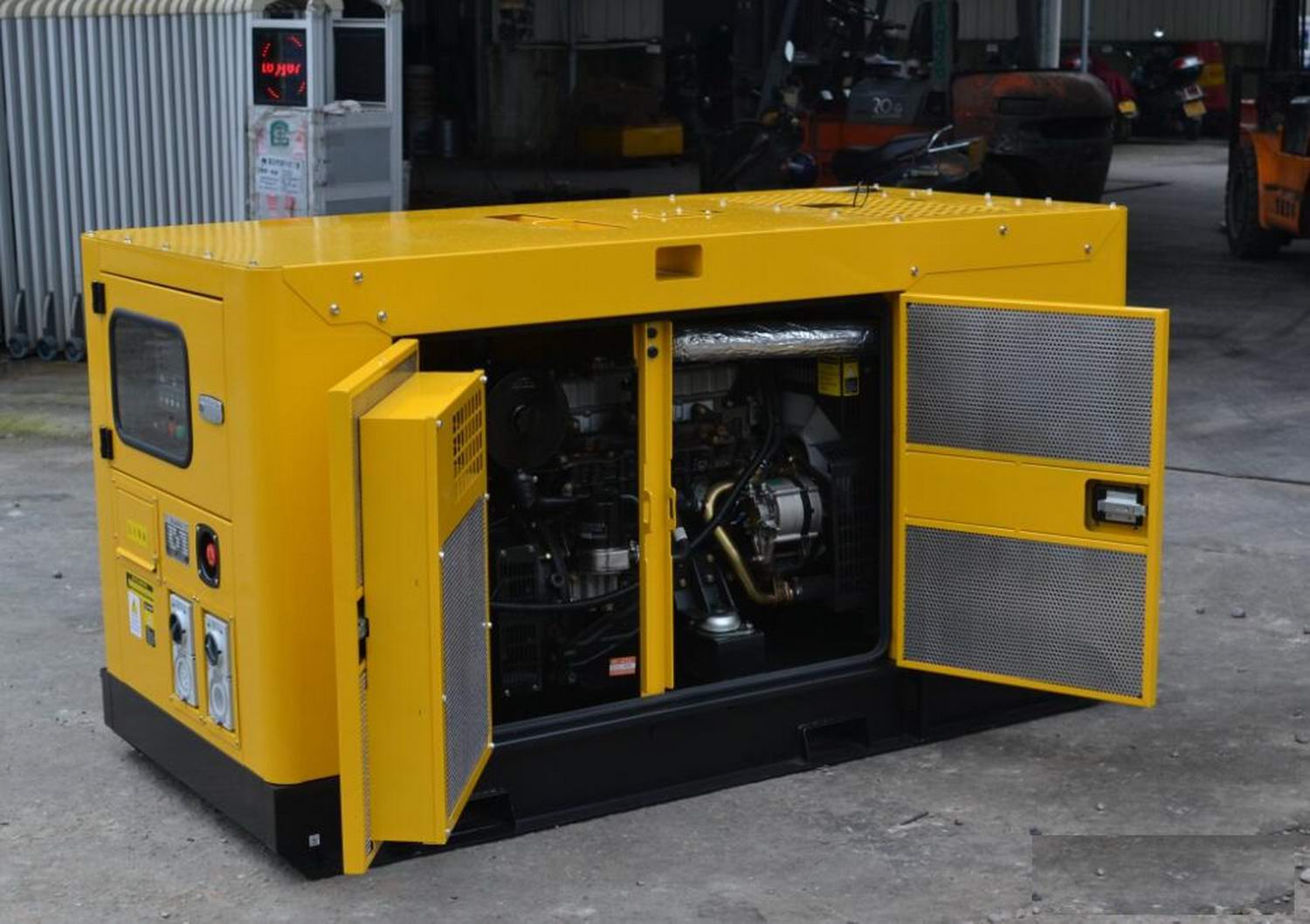

RHS	LHS	Doors swing 180% of easy access.

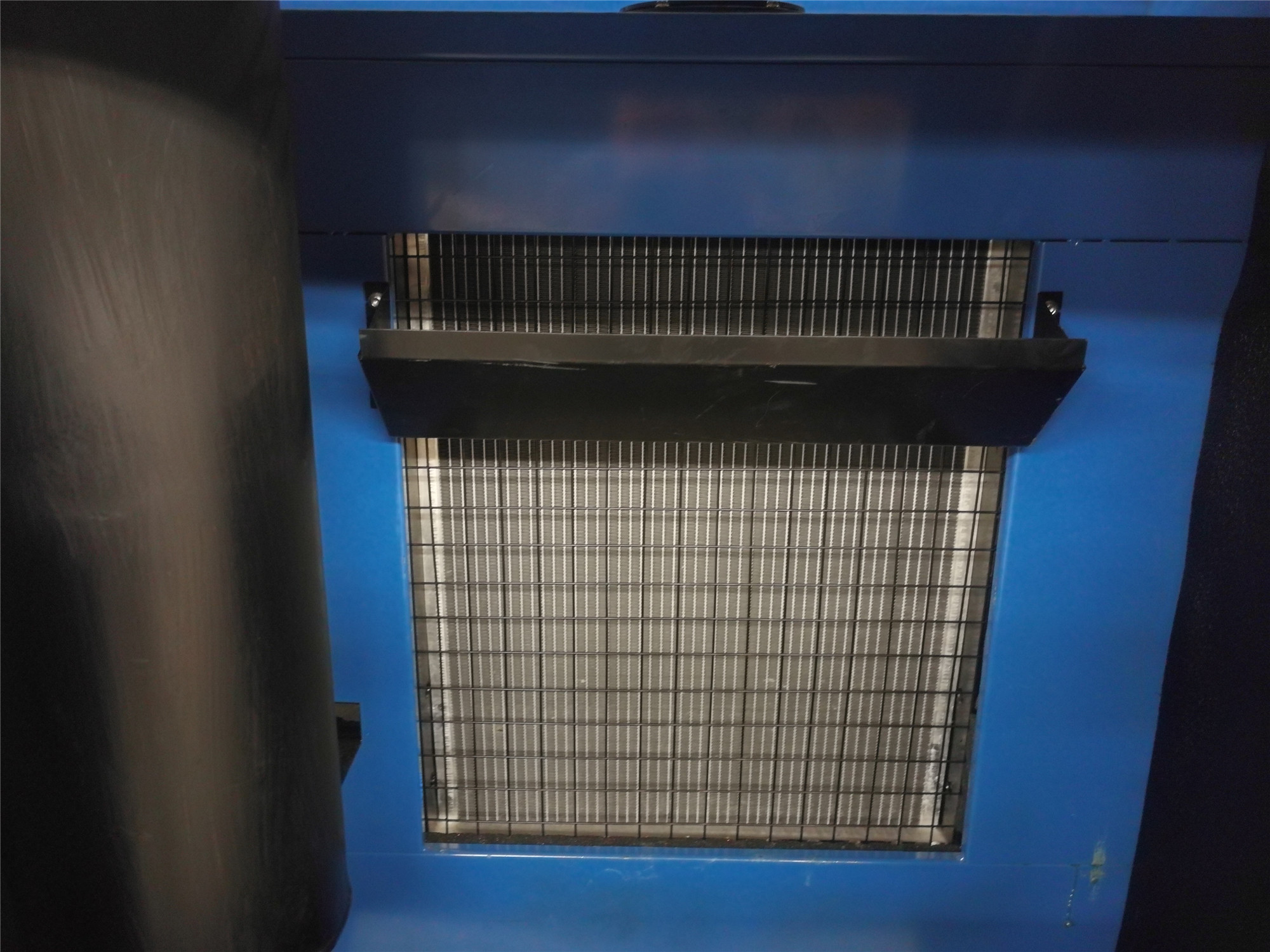

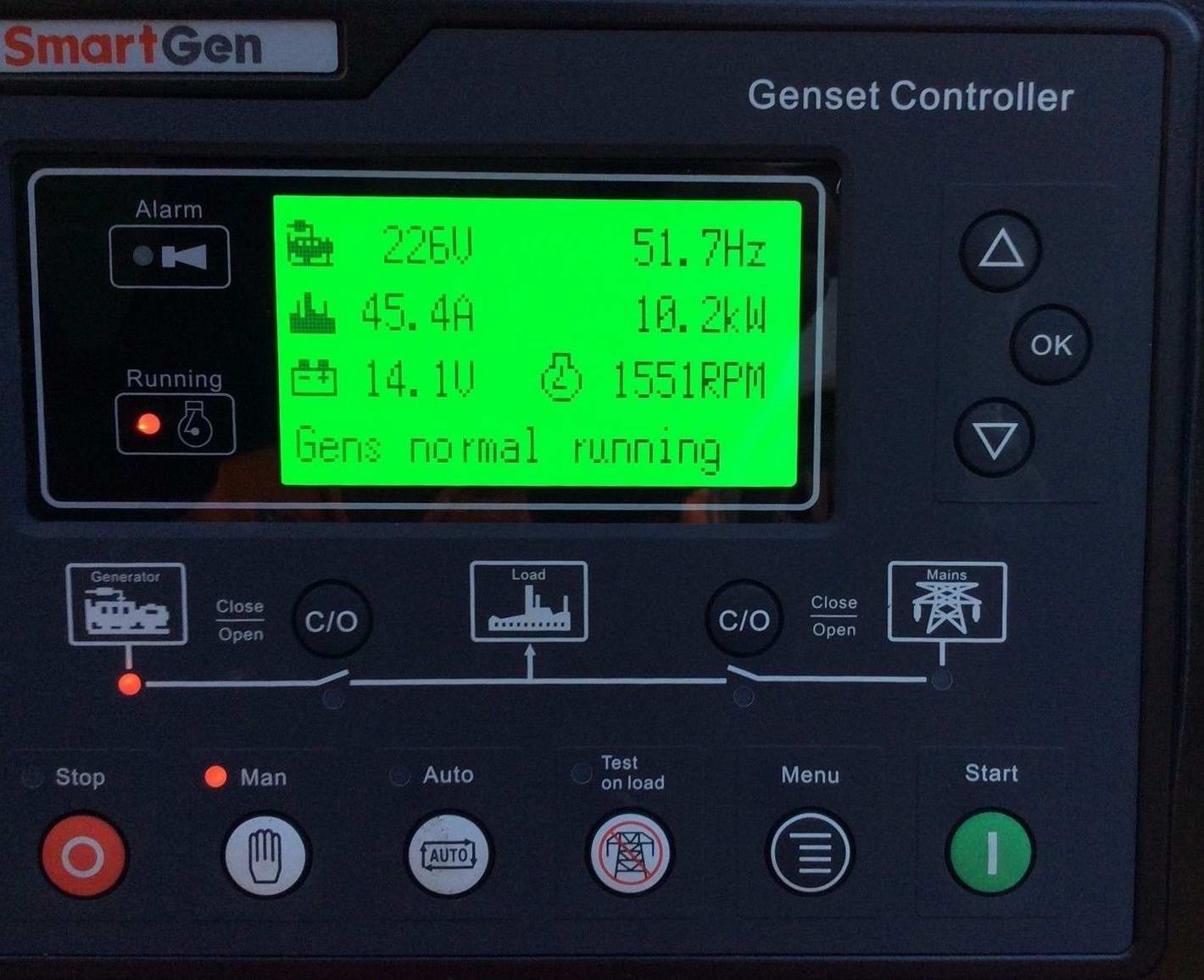

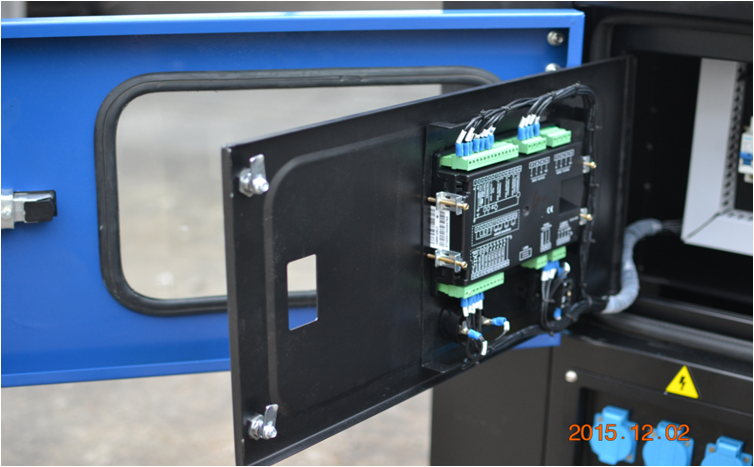

SmartGen control unit.	Rear of SmartGen control unit.	Exhaust & Radiator compartment.

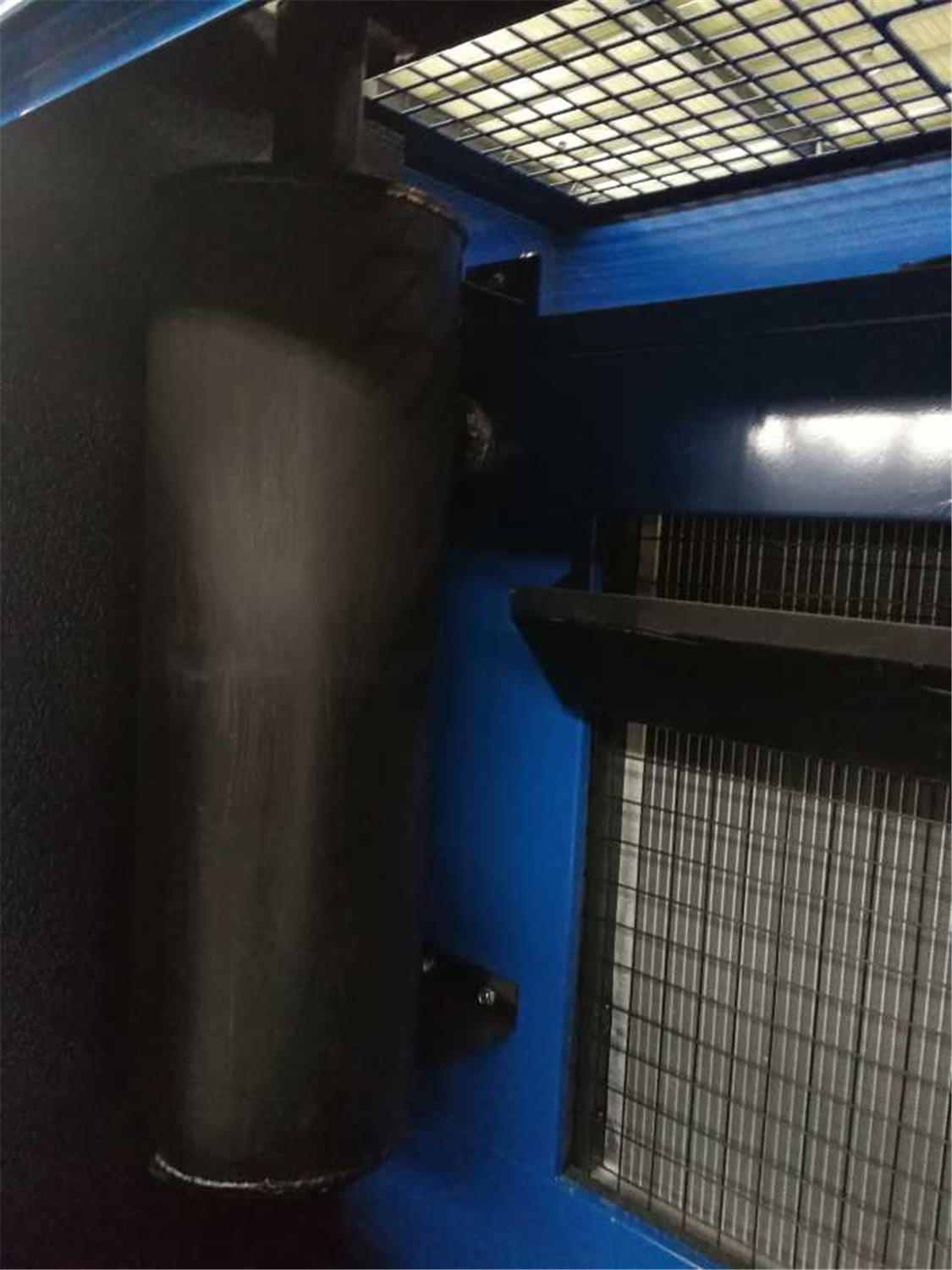

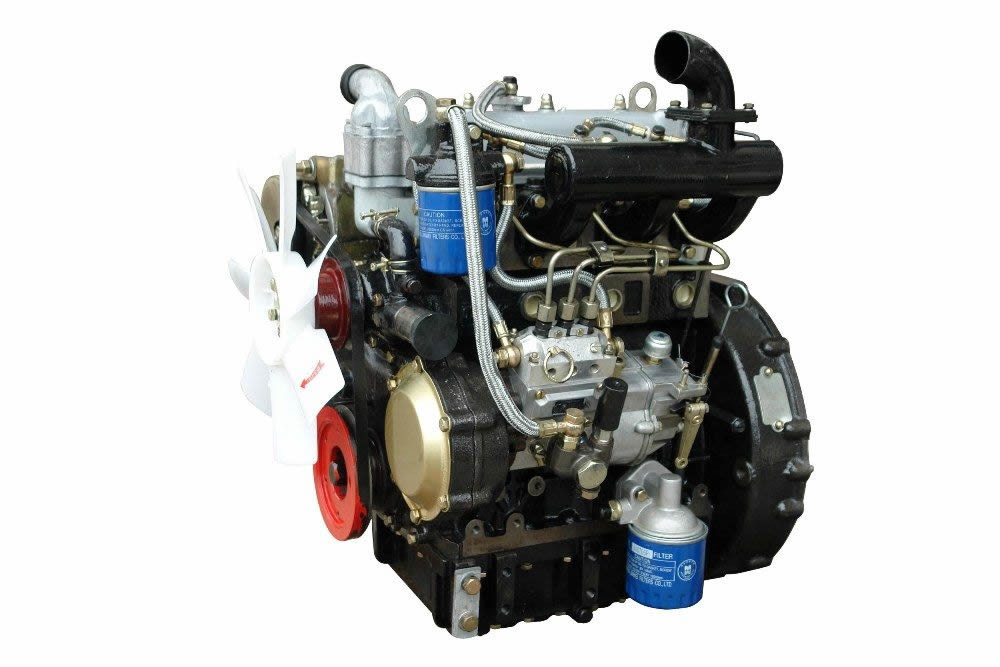

1.53 litre QC385d 3 Cylinder engine.	Engine exhaust and Radiator Silencing Air exit compartment.

If the Quanchai QC385D Silenced Diesel Generator suit your power needs Order it now!

Specifications:

• Max Output: 12'000W / 12kW / 12kVA
• Continuous Rated Output: 10'000W / 10kW / 10kVA
• Power Outlets: Dual IP66 rated 41.7A 240V
• AC Voltage: 240V 50Hz
• DC Output: 12V - 8.3A
• Battery: 12~24v, 120Ah Lead Acid battery
• Alternator Type: Permanent brush less magnet
• Dual IP66 rated 41.7A 240V power outlets
• 8.3A 12V DC outlet
• Multifunctional Smart-Gen LCD monitor
• Reliable digital AVR - automatic voltage regulation
• Overload protection
• Low oil indicator
• Extra-large dual swing access doors
• Sound insulation generator shroud
• Quality 3mm high tensile powder coated steel enclosure
• Heavy-duty bolt assembly
• Note: Power produced by generators can fluctuate +/- 5%. Do not attempt to directly connect any sensitive electronic devices without a suitable surge protector, or sending the power through a pure-sine Hybrid inverter first.

• ENGINE
• Electric key start
• Type: Three-cylinder, 4-stroke
• Water cooled 50°C Radiator, direct injection diesel
• Engine Oil Type: 10W-30 / 10W-40 / 15W-30 / 15W-40 non-synthetic engine oil
• Displacement: 1532cc
• Engine Output: 11kW (15hp) @1500rpm
• Compression Ratio: 18:1
• Fuel Consumption: 280 (g/kWh)
• Fuel: Commercially available diesel
• Fuel Tank Capacity: 48L (8hr run time)
• Oil Capacity: 4 Litres, with Easy-flow oil drain hose.
• Rated Continuous Operation: 1 hours (10% over load) during 12hrs (100% load)
• Noise Level at 7m: 68db
• Enclosure: Sound insulated 3mm high tensile powder coated steel
• SKU: QC385D Engine 175kg

IN THE SHIPPING CRATE

• 1x Quanchai QC385D Diesel engine & Single Phase Generator
• 2x Electric Ignition Keys
• 1x Fuel Funnel
• 1x Set Alligator Jumper Leads
• 1x Tool Kit

SIZE & WEIGHT

• Product Weight: 550 kg
• Product Dimensions (W x D x H): 175 x 85 x 103 cm
• Crated Weight: approx. 600 kg
• Crated Dimensions (W x D x H): ? x ? x ? cm

* WVO Requires proper Filtering & Treatment.
